Corrugated Flexible Nylon Conduit  ( PB )

Stainless Steel overbraid nylon conduit for Harsh Environments, Offshore/Petrochemical

*Corrugated Nylon Tubing *Liquid-tight *Highly resistant to abrasion, oil, or solvents
*Highly flexible and high fatigue life *Suitable cable carrier installations

Typical Applications: Machinery, robot, railways, underground and public buildings.

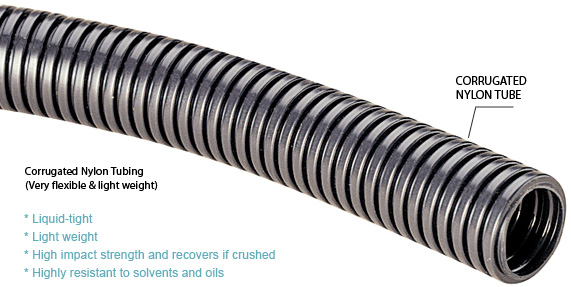

Nylon corrugated flexible conduit

  • Made of Nylon materials:
    *Corrugations provide flexibility not possible with straight-walled
    tubing.
    *Durable and light weight.
    *Unslit or Slit configurations for easy installation.
    *Used as conduit: more protective, durable, and less cumbersome than cable ties.

  • Applications:
    Appliances, automotive wire & cable sleeving, computer equipment,
    medical devices, machineries,wire conduits


  • Related Products:
    Corrugated Nylon tubing with wire over-braid for more abrasion resistant, and explosion proof.
    >>> Model PBF
    PBF

    Braided Small BORE Flexible stainless steel conduit
    braided small ID tubing

    Industry control wiring flexible conduit system
    Over Braided Flexible Conduit and conduit Fittings For factory Automation Cable Management
    Industry robot & control
    Flexible conduit protects sensitive cabling in industry control and industry robots.

The corrugated construction provides good flexibility and low weight. Durable, long lasting conduit that is rugged yet flexible. Corrugated nylon conduit is resistant to liquids, oils and gases, and highly resistant to acids and solvents. For use in controls, moving machine parts, motor and internal connections, as well as industrial, medical and electrical applications.

Type Trade Size I.D. (mm) O.D. (mm) Meter/Coil
Min. Max. Min. Max.
PB-01 1/4" 6.4 6.6 9.7 10.0 100
PB-02 5/16" 9.7 10.0 12.7 13.0 100
PB-03 3/8" 11.7 12.0 15.5 15.8 100
PB-04 1/2" 16.5 16.7 20.8 21.2 100
PB-06 3/4" 21.5 22.0 28.0 28.5 100
PB-10 1" 27.7 28.2 33.5 34.0 50
PB-12 1-1/4" 35.5 36.0 41.2 41.8 50
PB-20 2" 46.4 47 53.8 54.5 50

Material: Polyamide (Nylon) 6
Applications: Buildings (Low fire risk), Machine Tools, Robot
Corrugated Flexible Nylon Conduit is suitable for machineries, Railways,
underground and public buildings electrical wiring applications.

We offer a whole range of liquid tight fittings that are quick and easy to install:

Corrugated nylon conduit straight connector (PF,PG,METRIC THREADS)

Corrugated nylon conduit angle connector (PF,PG,METRIC THREADS)

PFB (PF), PGB (PG), PMB (METRIC)

PFL (PF), PGL (PG), PML (METRIC)

Liquid Tight Non-Metallic Straight Connector (NPT threads)

Liquid Tight Non-Metallic Angle Connector (NPT threads)

NMB (NPT)

NML (NPT)

The angle non-metallic connector provides a smooth, gradual radius bend. Wiring is easily pulled or pushed through fitting and there are no sharp edges to strip wire.
Other flexible conduit & fittings:
 Over Braided Flexible Conduit systems for use on vehicle wiring harnesses

Braided Nylon Conduit (EMC Screening)
With anodized black aluminum connector

Liquid-tight Flexible Steel Conduit Systems

Smallbore Stainless Steel Flexible Conduit   Small bore Stainless Steel Flexible Conduit, Suitable for use in Industrial environments.

braided flexible steel conduitsFOR INDUSTRIAL WRINGS
Aluminum Liquid-tight ConnectorAluminum Liquid-tight Connector for corrugated hose
Aluminum Liquid-tight Connector Designed For Corrugated Hose: This new line of connectors are made of high-quality forged aluminum for superior strength and durability.  This unique configurations work perfectly with corrugated hose.
