Over Braided Flexible Metal Conduit, water proof, EMC Screening ( YF-704 ) Heavy Series Over Braided Flexible Conduit for Robotics Spot Welding Line Wirings

typically used for steel mills machineries, robotics and petrochemical industrial cable protection
*Heavy Series galvanized steel helically wound, square locked type construction braided metallic conduit
 with PVC coating and wire over-braid. Metal braiding provides increased abrasion resistance.
*1/4"~6" trade size  *Water-tight *EMI/RFI shielding *Resists hot metal splashes

Heavy Series Water Proof EMI Shielding Over Braided Flexible Metal Conduit For Industry Automation Wiring (YF-704)
  • MADE FROM TYPE YF-707 (square-locked) CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provides more abrasion resistance and efficient EMI/RFI shielding.
    *
    Explosion proof.
    *Durable and long life.
    *Inner core made from  galvanized steel strip.
    *Square locked construction for more dynamic flexibility.
    *Resists hot metal  splashes and high temperature
    *PVC covering provides water & moisture protections for the electrical conductors

    Braided flexible conduit assembly
    Over-braided flexible conduit system with connectors


    Applications:

    Suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening and water tightness are required. Most suitable for petrochemical and steel mills electric wirings management.
Heavy Series Water Proof EMI Shielding Over Braided Flexible Metal Conduit
Clean data transmission in a noisy environment is an ever increasing requirement on today's crowded factory floors. Over Braided flexible steel conduit systems provide excellent EMI and RFI shielding, as well as mechanical protection, resulting in improved data transmission for factory automations.
Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil
Min. Max. Min. Max.
YF-70400 5mm 4.8 5.3 9.3 9.9 40 100
YF-70401 8mm 8.0 8.4 13.0 13.4 50 100
YF-70402 1/4" 9.7

10.2

15.4 15.7 60 100
YF-70403 3/8" 12.3

12.8

18.5 19.0 70 50
YF-70404 1/2" 15.7 16.3 21.8 22.3 90 50
YF-70406 3/4" 20.7 21.2 27.2 27.7 110 50
YF-70410 1" 26.2 26.8 33.7 34.4 150 50
YF-70412 1-1/4" 34.7 35.4 42.5 43.2 175 30
YF-70414 1-1/2" 40.0 40.6 48.4 49.3 200 25
YF-70420 2" 51.3 51.9 60.4 61.3 230 20
YF-70424 2-1/2" 62.9 63.6 73.1 74.0 250 10
YF-70430 3" 77.9 78.7 88.8 89.9 300 10
YF-70440 4" 101.6 102.6 114.2 115.3 500 10
YF-70450 5" 125.0 127.0 141.0 144.0 580 5
YF-70460 6" 150.0 153.0 166.0 169.0 650 5

Typical Applications For Over Braided Flexible Metallic Conduits: Industry Control Wiring

Heavy industry wiringsBraided Flexible Metallic Conduits

Over braided flexible steel conduit,water proof
 For Heavy
 Industry
 Wirings

1) Electromagnetic Interference (EMI) considerations, EMC screening:
         *computers rooms *telecommunications *control systems *PLC circuit
2) Abrasion resistance considerations:
         *railway rolling stock *heavy duty industrial applications
3) Hot metal splashes resistance considerations:
         *steel mills *petrochemical plants
, Heavy Industrial wirings
4) Mechanical integrity:
         *security/CCTV *anti-vandal applications *robotics *Ships & Trains

*EMI/RFI shielding  *Water-tight  *Resists hot metal splashes  *Abrasion Resistant

Small ID Metal Hose >>>

*All sizes and dimensions listed above are subject to manufacturing tolerances. braided metallic conduit
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
 flexible conduit               Also Refer To:
Braided Corrugated Nylon Conduit

Small Bore Flexible Conduit and Conduit Fittings for instrument or sensor wirings
Small Bore Flexible Conduit and Conduit Fittings for instrument or sensor wirings

www.delikon.com
Download the catalog page for DELIKON YF-704 Over Braided Water Proof Flexible Metal ConduitDownload the catalog page for DELIKON YF-704 Over Braided PVC Jacketed Flexible Metal Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
Over Braided Flexible Conduit (Heavy series) for protection of industrial electrical cablesOver Braided Flexible Conduit (Heavy series) for protection of industrial electrical cables against water, oil, grease, solvents, and the outer braiding provides protection against hot metal sparks and slag. Industry Automation

Delikon EMI Cable Shielding and ESD Suppressing Heavy Series Over Braided Flexible Conduit and Connector

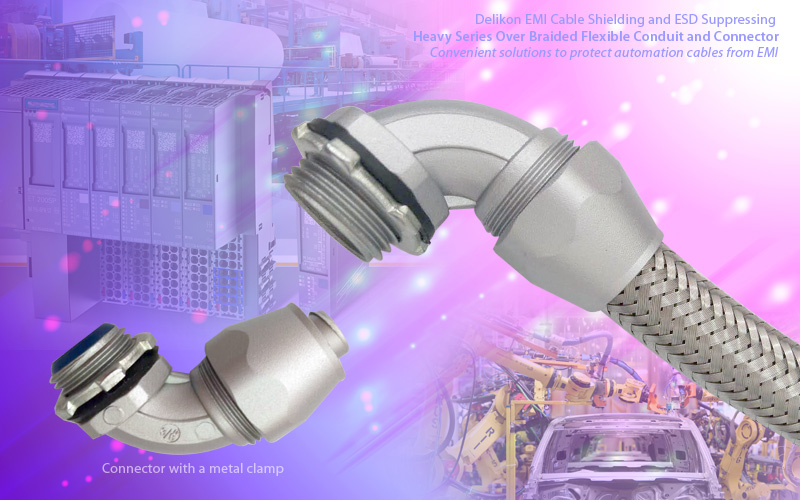

Delikon EMI Cable Shielding and ESD Suppressing Heavy Series Over Braided Flexible Conduit and Connector. Delikon EMI Cable Shielding Flexible Conduit solutions cover a range from heavy series over braided flexible metal conduit, heavy series water proof over braided flexible conduit to heavy series over braided liquid tight conduit. The over braided flexible conduits can be used for EMI, ESD suppression. The shielding flexible conduit comes in various sizes and its metallic, strong nature allows it to withstand any irregular pressure that may occur. Grounding can also be easily achieved with Delikon Heavy Series Fittings. The connector comes with a metal clamp, providing simultaneous attachment and grounding for the braiding. The connector is used as an end piece for cable shielding system. Delikon EMI Cable Shielding and ESD Suppressing Heavy Series Over Braided Flexible Conduit and Connector provide convenient solutions to protect automation cables from EMI that may be coming from outside components as well as provide environmental protection.
Delikon EMI Cable Shielding Flexible Conduit solutions cover a range from heavy series over braided flexible metal conduit, heavy series water proof over braided flexible conduit to heavy series over braided liquid tight conduit. The over braided flexible conduits can be used for EMI, ESD suppression. The shielding flexible conduit comes in various sizes and its metallic, strong nature allows it to withstand any irregular pressure that may occur. Grounding can also be easily achieved with Delikon Heavy Series Fittings. The connector comes with a metal clamp, providing simultaneous attachment and grounding for the braiding. The connector is used as an end piece for cable shielding system. Delikon EMI Cable Shielding and ESD Suppressing Heavy Series Over Braided Flexible Conduit and Connector provide convenient solutions to protect automation cables from EMI that may be coming from outside components as well as provide environmental protection.

Delikon Automation Servo Motor Drive Heavy Series Over Braided Flexible Conduit with MS Adapter





Delikon Automation Servo Motor Drive Heavy Series Over Braided Flexible Conduit with MS Adapter

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector protect automation and industrial control system wire and cable. Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector protect signals in the cable conductors from external sources of EMI, and also reduce the level of interference radiated by the cable, which could affect other conductors, equipment.
Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector protect automation and industrial control system wire and cable
Automation industry growth drives the need for adequate cables that can support the unique power and data transfer demands of new and innovative solutions. More efficient equipment ultimately creates more expensive downtime when it breaks down. Consequently, power distribution and data cables for production lines, automated machinery, safety systems, and communications require a higher level of reliability and dependability.

Delikon
EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector provide a range of cable protection and emi shielding solutions facilitating decreased maintenance frequency and subsequent maintenance downtime in the factory automation systems.Delikon High Temperature EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector provide a range of cable protection and emi shielding solutions facilitating decreased maintenance frequency and subsequent maintenance downtime in the factory automation systems

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector are designed to meet
reliability and durability challenges without sacrificing flexibility.

Electromagnetic interference EMI in motion control system cabling can be a major source of frustration for servo motor system designers and users. Left unsuppressed, it interferes with system control, creates data errors, and can even turn devices on and off. Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shielding Termination Heavy Series Connector protect signals in the cable conductors from external sources of EMI, and also reduce the level of interference radiated by the cable, which could affect other conductors, equipment, and wiring surrounding the cable.
Delikon Heavy Series Over Braided Flexible Conduit and Fittings for Industry 4.0 Factory and Machine Automation cable protection



Over Braided Flexible Steel Conduits for heavy industryFor Industry Automation Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
Heavy series flexible conduit fittings,heavy series connector Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel Heavy Series Stainless Steel Connector combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y Y Y
