Over Braided InterLocked Metal Liquid Tight Conduit ( SM-701 ) Heavy Series

Heavy series flexible sheath fittings
Shield Termination
Heavy Series Fittings

High Strength InterLocked Over Braided Liquid Tight Conduit is most suitable for industry machines wirings demanding high mechanical strength with high abrasion and hot metal swarfs resistance.

Delikon Automation Flexible Conduit and FittingsDelikon EMI shielding Heavy Series Over Braided Interlocked Liquid Tight Metal Conduit protects industry automation and control cables.

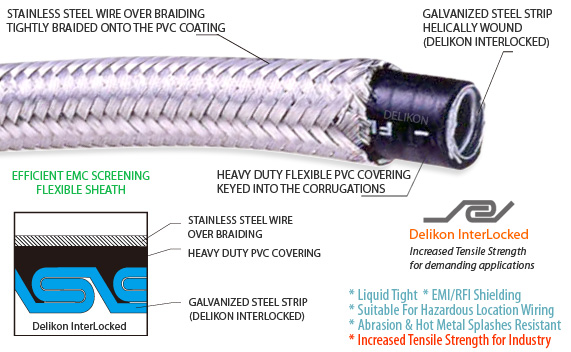

*Galvanized steel helically wound (interlocked) with PVC coating and wire over-braid.
*Trade size: 3/8"~6" (
Interlocked profile for increased tensile strength.*Liquid-tight
*EMI shielding *Explosion proof (for use in Hazardous Location) *High Tensile strength

Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector organize and protect variable frequency drive input and motor wiring, and reduces interference EMI on nearby equipment in oil and gas operations, and metal industry

No Time for Downtime. Protect and shield your automation PLC PAC cables, VFD cables with Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector.
Equipment reliability is crucial in any industry, but is especially important in oil and gas operations, and metal industry where every minute of uptime counts and lost production time carries costly consequences. Delikon EMI RFI Shielding Heavy Series Over Braided Flexible Conduit and EMI RFI Shield Termination Heavy Series Connector organize and protect variable frequency drive input and motor wiring, and reduces interference EMI on nearby equipment. Delikon Heavy Series Connector terminate the shield and ground system directly at the motor and driveDelikon heavy series over braided flexible conduit system has a layer of braid and foil shielding that provides excellent protection against signal interference caused by voltage fluctuations and current spikes. Delikon Heavy Series Connector terminate the shield and ground system directly at the motor and drive.
Delikon, experts in the manufacture of heavy series over braided flexible conduit and fittings for industry automation power and data cables protection. Our flexible conduit systems offer reliable cable protection solutions for PLC, sensors, machining centers, industry robot and other demanding industrial applications.
Over Braided InterLocked Metal Liquid Tight Conduit for machine cables protection

Heavy Series Over Braided Flexible Conduit For Glass Industry Equipment Wiring

  • MADE FROM INTERLOCKED LIQUID TIGHT CONDUIT WITH WIRE OVER-BRAID:
    *Wire over-braiding provides more abrasion resistant, EMI shielding and resistance to hot metal splashes.
    *
    Explosion proof.
    Liquid-tight.
    *Durable and long life.
    *High tensile strength.
    *Inner core made from  galvanized steel strip.
    *Interlocked construction prevents unraveling
  • Applications:
    This Flexible Metal Conduit is suitable for use in Hazardous Locations; Industrial environments where higher abrasion resistance or screening are required.
    Braided flexible conduit for CNC machine wiring assembly
  • Related Products:
    Liquid tight flexible Metal conduit without wire over-braid. Suitable for machines.
    Model YF-706  Model YF-806
    Liquid tight metal conduit with nylon cord packing InterLocked Liquid tight Flexible Metal Conduit





Electrical flexible conduits for offshore oil and gas industry cable protection
Offshore & Heavy industrial wiring flexible conduit

Heavy Series Over Braided Flexible Conduit for high temperature industry applications
Heavy Series Over Braided Flexible Conduit for high temperature industry applications
Delikon VFD cable EMI RFI Shielding Heavy Series Over Braided Flexible Conduit
Over Braided Flexible Metal Conduit offers excellent protection to cables against hot metal splash in steel mills. For steel mill retrofit.

Stainless Steel Over Braided Liquidtight ConduitOver braided liquid tight conduit with nylon sealing cord

EMI/RFI Shielding conduit: This conduit is designed to protect sensitive electronic circuits in applications such as communications, radar and data transmission from Electro-Magnetic and Radio Frequency Interference (EMI / RFI). This braided liquid tight flexible metal conduit is most suitable for radar equipments, airports, CNC machineries and PLC wirings in industrial environments. Industry Control Flexible Conduit

Type Trade Size I.D. (mm) O.D. (mm) Min Bending Radius (mm) Meter/Coil
MIN. MAX. MIN. MAX.
SM-70101 6mm 6.2 6.7 12.0 12.5 55 100
SM-70102 1/4" 9.7 10.2 16.0 16.5 65 50
SM-70103 3/8" 12.3

12.8

18.5 19.0 75 50
SM-70104 1/2" 15.7 16.3 21.8 22.3 95 50
SM-70106 3/4" 20.7 21.2 26.2 27.7 120 30
SM-70110 1"

26.2

26.8 33.8 34.4 180 30
SM-70112 1-1/4" 34.7 35.4 42.4 43.2 230 20
SM-70114 1-1/2" 40.0 40.6 48.4 49.3 270 20
SM-70120 2" 51.3 51.9 60.4 61.3 300 15
SM-70124 2-1/2" 62.9 63.6  73.1 74.0 350 10
SM-70130 3" 77.9 78.7 88.9 89.9 500 10
SM-70140 4"  101.6 102.6 114.3 115.3 650 5
SM-70150 5" 126.0 128.0 133.0 135.0 800 5
SM-70160 6" 149.0 151.0 156.0 158.0 1000 5
Stainless steel braid provides extra protection. This interlocked over braided liquid tight conduit is highly resistant to wear, abrasion and electric sparks or hot metal splashes. This conduit is also resistant to common oils and grease in industry environments and has good flexibility and good mechanical resistance. Interlocked over braided liquid tight conduit also offers good protection against electromagnetic interference across a large wave band.
delikon.com
Download the catalog page for DELIKON SM-701 Over Braided Interlocked Liquid Tight ConduitDownload the catalog page for DELIKON SM-701 Over Braided Interlocked Liquid Tight Conduit in PDF File format. Or have a look at other models of over braided flexible conduit and braided conduit fittings.
delikon.com
Over braided flexible conduit for industry automation cable protectionHeavy Series Over Braided Liquid Tight Conduit
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible upon request and our approval.
