Oil Resistant Over Braided Flexible Rubber Conduit ( WNS ), Braided Rubber Hose

Oil resistant Electrical Flexible Conduits,Braided Rubber Hose
Oil resistant
Lubricant Resistant
Coolant Resistant

*Stainless Steel Over Braiding *EMI shielding *Liquid Tight *Oil resistant, Lubricant Resistant and Coolant Resistant *Stainless Steel Overbraiding for abrasion resistance, hot metal splash resistance, and providing Protection against Swarf or Chip
*Rubber hose withstands exposure to machine tool fluids, oils, dust. Excellent fuel and oil resistance.Delikon flexible conduit

Oil Resistant Flexible Conduit is especially suitable for wiring machine tools, hydraulic presses and other types of industrial equipments, which are subjected to moisture from coolant, oils and fluids. Over braided flexible rubber hose is also suitable for transferring machine oils, coolant and fuels.

Over Braided Rubber Flexible Conduit & Fittings For Machine Tool Cables Protection

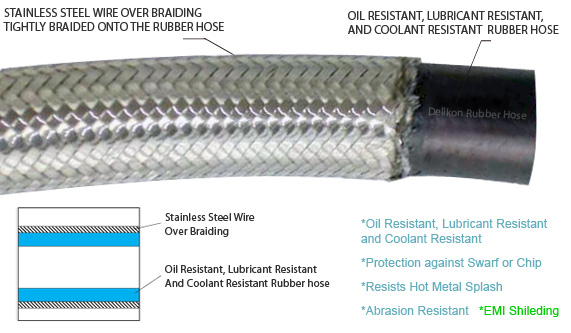

  • OIL RESISTANT CONDUIT WITH WIRE OVER-BRAID:
    It is ideally used in situations where a flexible conduit must withstand exposure to many machine tool fluids, oils, Coolant, etc.
    *Wire over-braiding provides more abrasion resistant and electric EMI shielding.
    *Protection against Swarf or Chip.
    *Inner hose made from oil resistant, Lubricant Resistant and Coolant Resistant rubber.


Delikon InterLocked Stainless Steel Liquid Tight Conduit,stainless steel liquidtight connector for CHEMICAL INDUSTRY wiring
Delikon InterLocked Stainless Steel Liquid Tight Conduit,stainless steel liquidtight connector for CHEMICAL INDUSTRY wiring

Rubber Coated Metal Liquid Tight Conduit for high low temperatures
Rubber Coated Metal Liquid Tight Conduit for
high low temperatures

Heavy Series Flexible Sheath and Connector for steel mills, coke plants and glass manufacturing power and data cable protection




Delikon Heavy Series Over Braided Flexible Conduit and Fittings are specially designed for protecting electric and automation cables from the harsh environments found in steel mills, coke plants and glass manufacturing. Our heavy series over braided flexible conduit systems are superior in their ability to withstand heat, moisture and Connector for heavy series flexible sheathmolten material splash and are highly resistant to mechanical and physical abuse. The overall stainless steel braid provides slag protection.

Delikon Oil Resistant Over Braided Flexible Conduit and Fittings system is ideally used in situations where a flexible conduit must withstand exposure to machine tool fluids, oils, dust, etc. The stainless steel over braiding provides abrasion resistance, and protection against Swarf or Chip. The conduit fittings clamp the inner conduit and the braiding tightly, and keep the conduit assembly liquid tight when subject to pressure or machine vibrations.
Sizes of this over braided flexible rubber conduit are specially designed for machine tools power or data cables, motor cables and control cables. It could also be used for transferring machine fluids, such as oil, coolant.
Delikon Oil Resistant Over Braided Flexible Rubber Conduit protects Machine Tool Wire MTW
delikon.com
CNC machine tool cable protection Oil Resistant, Lubricant Resistant and Coolant Resistant Over Braided Flexible Rubber Conduit

Over Braided Oil Resistant Flexible Rubber Hose for exposure to cutting oils, machine fluids
Delikon Oil Resistant Over Braided Flexible Conduit and Conduit Fittings protect Servo Feedback Cable, Servo Power Cable, Servo Drive Command Cable, Spindle Feedback Cable, Spindle Power Cable, CRT MDI Cables.

Type Trade Size I.D. (mm) O.D. (mm) Meter/Coil
Min. Max. Min. Max.
WNS-06 6 5.7 6.3 13.5 13.8 100
WNS-08 8 7.7 8.3 15.5 15.8 100
WNS-10 10 9.7 10.3 17.5 17.8 100
WNS-13 13 12.7 13.3 22.5 22.8 50
WNS-16 16 15.7 16.5 25.5 26.8 50
WNS-19 19 18.7 19.5 29.5 29.8 30
WNS-25 25 24.7 25.5 36.5 36.8 20
Oil Resistant Braided Flexible Conduit Oil Resistant Braided Flexible Conduit

Delikon has evolved into one of the leading manufacturers flexible conduit assemblies for the machine tool industry. Oil Resistant, Lubricant Resistant and Coolant Resistant Over Braided Rubber Flexible Conduit provides Protection against Swarf or Chip.

Delikon has evolved into one of the leading manufacturers flexible conduit assemblies for the machine tool industry.
Featuring an Oil resistant, Lubricant Resistant and Coolant Resistantinner hose

Type Trade Size I.D. (mm) O.D. (mm) Meter/Coil
Min. Max. Min. Max.
ORC-04 04 5.30 5.90 9.90 10.50 50
ORC-06 06 8.30 8.90 12.30 12.90 50
ORC-08 08 10.90 11.50 15.00 15.60 30
ORC-10 10 13.90 14.50 19.00 19.60 30
ORC-12 12 17.20 17.80 22.60 23.20 20
ORC-16 16 22.10 22.70 27.90 28.50 10


                                 Fittings for Over Braided Rubber Flexible Conduit

These conduit fittings clamp the inner conduit and the braiding tightly, and keep the conduit assembly liquid tight when subject to pressure or machine vibrations.

Delikon Oil Resistant, Lubricant Resistant and Coolant Resistant Over Braided Rubber Flexible Conduit and Heavy Series Conduit Fittings protect Servo Feedback Cable,Servo Power Cable,Servo Drive Command Cable,Spindle Feedback Cable,Spindle Power Cable,CRT MDI Cables.
Delikon Heavy Series Conduit Fittings

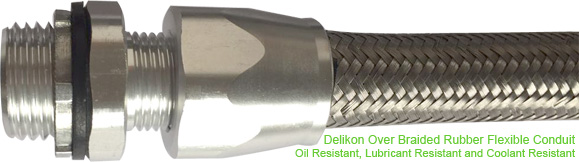

Straight Aluminum Connector for oil resistant over braided flexible rubber conduit. Oil resistant, liquid tight.
Straight Aluminum Connector for oil resistant over braided flexible rubber conduit. Oil resistant, liquid tight.
Type Suitable for use with
WABS-06 WNS-06 ORC-04
WABS-08 WNS-08 ORC-06
WABS-10 WNS-10 ORC-08
WABS-13 WNS-13 ORC-10
WABS-16 WNS-16 ORC-12
WABS-19 WNS-19 ORC-16
WABS-25 WNS-25 -
90 degrees Aluminum Connector for oil resistant over braided flexible rubber conduit. Oil resistant, liquid tight.
90 degrees Aluminum Connector for oil resistant over braided flexible rubber conduit. Oil resistant, liquid tight.
Type Suitable for use with
WALS-06 WNS-06 ORC-04
WALS-08 WNS-08 ORC-06
WALS-10 WNS-10 ORC-08
WALS-13 WNS-13 ORC-10
WALS-16 WNS-16 ORC-12
WALS-19 WNS-19 ORC-16
WALS-25 WNS-25 -
Download the catalog page for DELIKON WNS Oil Resistant Over Braided Flexible Rubber Conduit and WABS Straight Connector and WALS 90 Degrees ConectorDownload the catalog page for DELIKON WNS Oil Resistant Over Braided Flexible Rubber Conduit and WABS Straight Connector and WALS 90 Degrees Conector in PDF File format.
Delikon Heavy Series Over Braided Flexible Conduit,Fittings for Industry 4.0 power, signal and data cables
*All sizes and dimensions listed above are subject to manufacturing tolerances.
*Standard Packaging: Shrink wrapped coil. Other custom packaging methods or of longer length is also possible
Over braided flexible conduit for industry automation cable protectionupon request and our approval.
Delikon, Leaders in the manufacture of EMI Shielding Heavy Series Over Braided Flexible Conduit and Fittings, provides cable protection solutions for Multi Tasking machine, 5 axis machining center, turning center, vertical machining center VMC,horizontal machining center HMC and automation.

Delikon, Leaders in the manufacture of EMI Shielding Heavy Series Over Braided Flexible Conduit and Fittings, provides cable protection solutions for Multi Tasking machine, 5 axis machining center, turning center, vertical machining center VMC,horizontal machining center HMC and automation.

Complete Range of Delikon Quality Liquid Tight Conduits
Related Products: Braided Electrical Flexible Steel Conduits For Industry Cable Management
Over Braided Flexible Steel Conduits for heavy industryfor more mechanical strength, increased EMI shielding

Delikon Oil Resistant Over Braided Flexible Rubber Conduit and Fittings protect Machine Tool Wire MTW against machine tool fluids, oil, lubricant, and coolant. This over braided flexible conduit system also provides EMI shielding, abrasion resistance, hot metal splash resistance, and protection against Swarf or Chip.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Fittings protect CNC machine tools numerical control cables, motor cables and power cables. Delikon is known for global leadership in providing reliable cable protection flexible conduit systems to metal cutting and manufacturing industry,with industry leading Heavy Series Over Braided Flexible Conduit and Fittings cable protection for horizontal machining center,vertical machining center,wire EDM and Ram EDM,and graphite machining centers.
Delikon EMI Shielding Heavy Series Over Braided Flexible Conduit and Fittings protect CNC machine tools numerical control cables, motor cables and power cables
Computer Numerical Control CNC Machine automation cable protection Heavy Series Over Braided Flexible Conduit with Military Circular Connector Backshells, Conduit adapter BackshellDelikon is known for global leadership in providing reliable cable protection flexible conduit systems to metal cutting and manufacturing industry, with industry leading Heavy Series Over Braided Flexible Conduit and Fittings cable protection systems for horizontal machining centers, vertical machining centers, wire EDM and Ram EDM, and graphite machining centers.
As your single source for automation cable protection, we deliver:
* Computer Numerical Control CNC Machine automation cable protection Heavy Series Over Braided Flexible Conduit with Military Circular Connector Backshells, Conduit adapter Backshell
* Heavy Series Over Braided Liquid Tight Conduit
* Heavy Series Over Braided Flexible Metal Conduit
* Oil Resistant Over Braided Flexible Rubber Conduit
* Over Braided Flexible Corrugated Nylon Conduit
* Heavy Series Conduit Fittings
Designed for typical shopfloor and machines, these over braided flexible conduit and fittingssolutions will decisively improve reliability of every CNC machine.
www.delikon.com



 EMI/RFI Shielding Conduits   For Industry Automation Wiring

Connectors and fittings for braided flexible conduitCONNECTORS & FITTINGS FOR
BRAIDED FLEXIBLE CONDUIT
Suitable connectors
Heavy series flexible conduit fittings,heavy series connector Aluminum connectors (FIXED or SWIVEL) Aluminum connectors (BLACK) Aluminum connectors (RED) Straight (US style) 90 degrees (US style) straight (metallic) 90 degrees (metallic) 45 degrees (metallic) swage fittings Stainless steel combination (internal thread) combination (set-screw)
Y Y Y Y Y Y Y Y Y Y Y Y Y
